FREELENSING CINE

DESCRIPTION

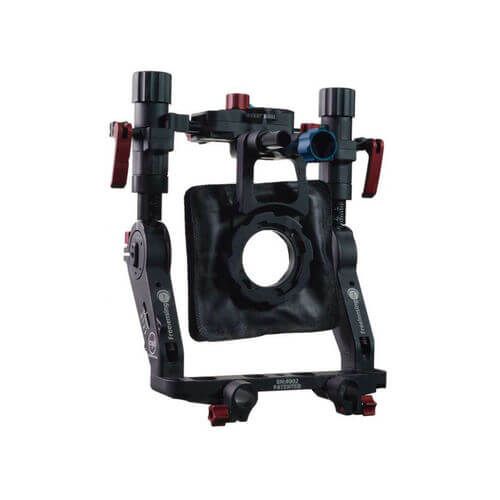

The Freelensing Cine is a system that leaves the optics virtually suspended in front of the camera sensor allowing the operator a fast and intuitive movement. It allows for shifts, parallel and perpendicular to the focal plane, rotation of the optical center, and a combination of both pan and tilt movements.

SPECS:

Universal, on 19mm bars
Currently Compatible Cameras: DSMC2 and Raptor network, Sony Venice, ARRI Mini LF.
Currently compatible lenses: Fixed spherical PL mount, up to 4 Kg weight in optical block.
Optics: Rotation angle in X and Y axis, Tilt and Swing: + – 20 degrees (depending on lens and camera).
Displacement in X and Y axis lateral and vertical + – 25mm.
Sensors:S16, S35, FF
No loss of brightness.
Control of displacements and rotations.
Slight.
Robust.
Accurate.
Simple and intuitive.
Quick to install.
Purely photographic tool.
Possibility of Macros.

KIT INCLUDE

S:

1x Free Lensing Cage
1x U-Shape Adapter
1x Alexa Mini LF Mount
1x Red V-Raptor Mount
1x Red DSMC2 Mount
1x Sony Venice Mount
4x Allen Tools
2x Small Allen Keys
2x 3kg Spring Counter Weight
2x 4kg Spring Counter Weight
1x Phillips Screwdriver
1x Screw Box
3x Gears & Mounting Parts
2x Wrenches
1x Operating Manual
1x Transport Case
